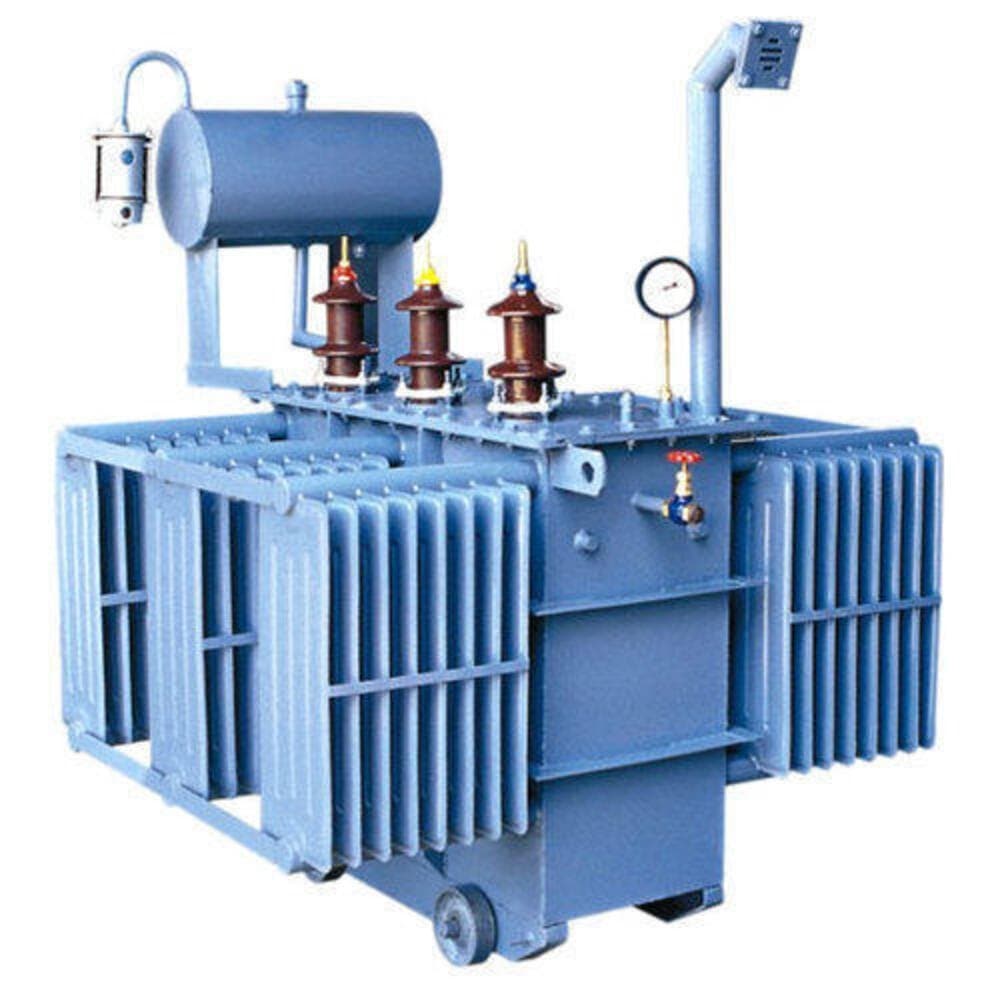

Distribution Transformers
Nik-San is a pioneer in manufacturing outdoor type oil-cooled Distribution Transformers. We offer both Conventional Transformers and Uni-Core Low Loss Transformers, catering to our customers' diverse needs. Our latest technology Uni-Core Build Transformer provides optimum core loss for enhanced performance.
Our Distribution Transformers are designed for efficient power distribution in various settings, ensuring reliable and stable power supply to end-users.
Main Features & Benefits
- Lifelong service without any hassles
- Suitable for hot & humid environments
- High Short Circuit Strength
- High Technology
- Low Losses transformers
- Maintenance free
Technical Specifications
| Rating | Up to 2500 KVA |
| CRGO | M3, M4, M5, ZDKH |
| No. of phases | Three Phase |
| Applicable Standard | IS 1180 & IS 2026 |
| Cooling | ONAN |
| Frequency | 50 Hz |
| Vector group | As Specified |
| Primary voltage | Up to 22 KV |
| Secondary voltage | As Specified |
| Winding material | Copper / Aluminum |
| Tapping Range | As Specified |
| Impedance | As Specified by customer |
Standard Fittings
- Lifting lugs
- H.V. bushings
- L.V. bushings
- Thermometer pocket
- Air release device
- Conservator with oil level indicator
- Breather
- Terminal connectors
- Cooling radiators
- Oil filling hole with cap
- Rating & Diagram Plate
Optional Fittings
- Off-circuit tapping
- Cable box
- Bus duct
- Temperature indicator (OTI & WTI)
- Pressure relief device (for sealed type)
- Buchholz Relay
- Filtration valve
- Valve for radiator
- Rollers
