Our Products

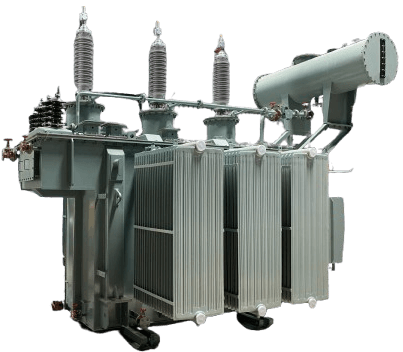

Power Transformers
High-quality power transformers designed for optimal performance in various applications.
Key Specifications:
- Rating: Up to 20 MVA
- CRGO: M3, M4, M5, ZDKH
- Cooling: ONAN/ANONAF
- Frequency: 50/60 Hz
- Primary voltage: Up to 33 KV

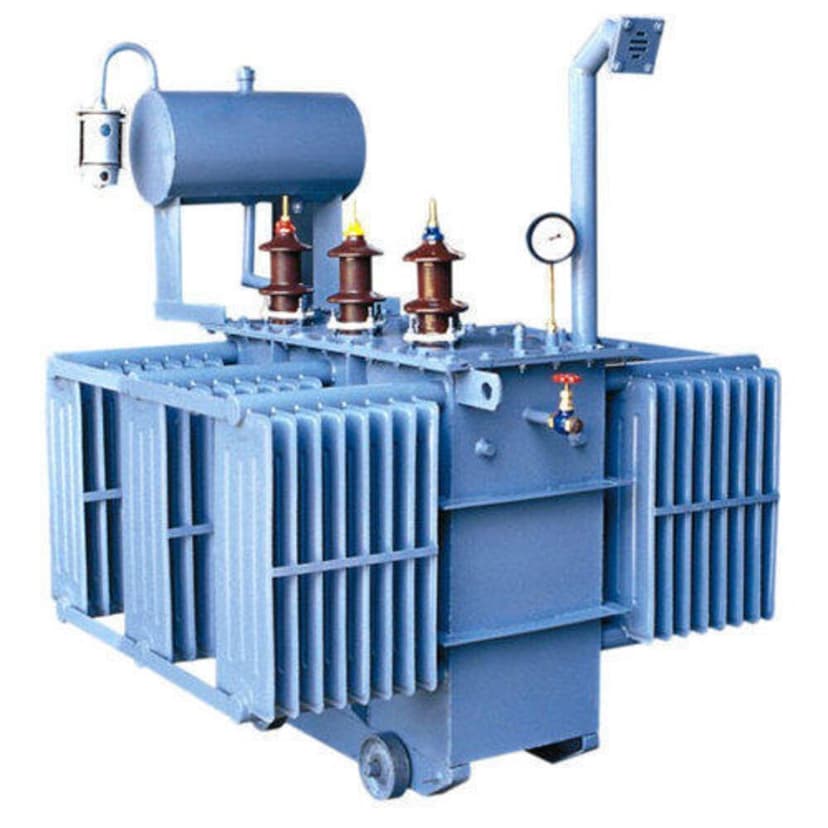

Distribution Transformers
Reliable distribution transformers for efficient power distribution in various settings.
Key Specifications:
- Rating: Up to 2500 KVA
- CRGO: M3, M4, M5, ZDKH
- Cooling: ONAN
- Frequency: 50 Hz
- Primary voltage: Up to 22 KV

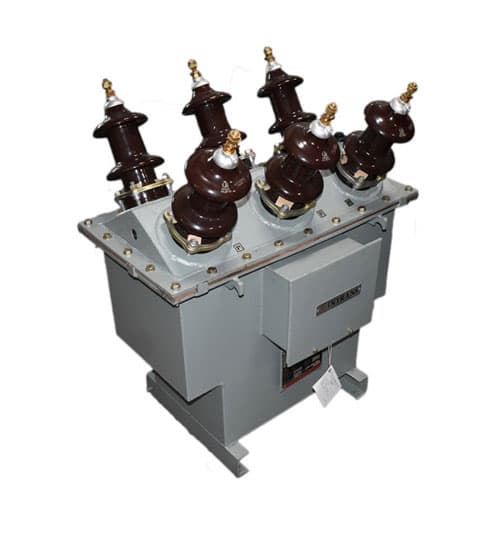

Instrument Transformers
Precision instrument transformers for accurate measurement and protection in power systems.
Key Specifications:
- CT ratio: 25/5 to 600/5 amp
- PT ratio: 11kv/110v to 33kv/110v
- Accuracy class: 1, 0.5, 0.5S, 0.2S
- Type: Outdoor oil cooled
- Frequency: 50 Hz

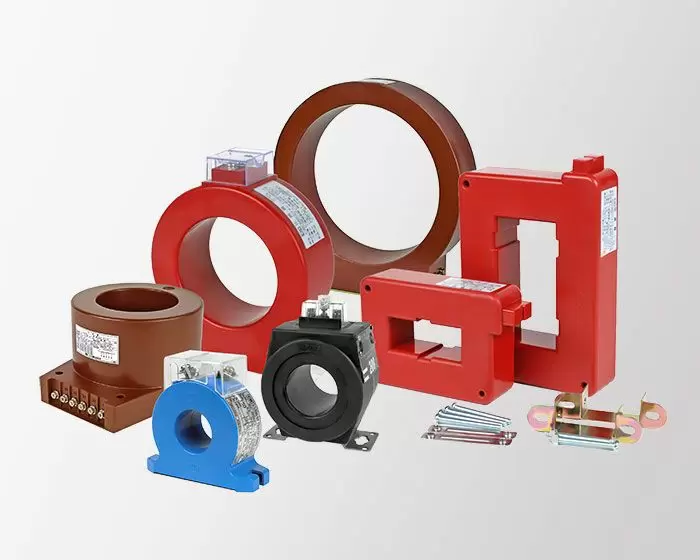

Low Tension Current Transformers
High-performance Low Tension Current Transformers (LTCTs) for various applications in the power sector.
Key Specifications:
- Rating: 1 AMP to 10,000 AMP
- Class: 5, 3, 1, 0.1, 0.2, 0.5, 0.5S
- Output: 2.5VA to 60VA
- Frequency: 50 Hz, 60 Hz
- Winding material: Copper

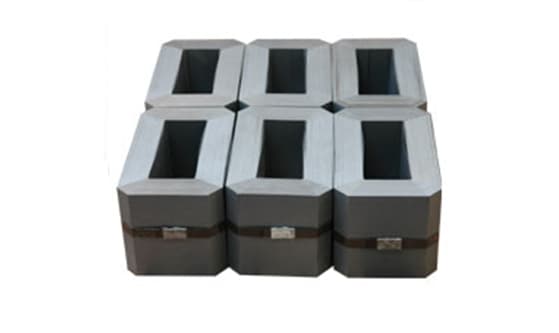

Wound Cores
High-quality wound cores for various transformer applications, offering optimal performance and efficiency.
Key Specifications:
- Types: Toroidal, Square, Rectangular, Oval, Step-Lap
- Material: CRGO Silicon Steel (M3, M4, M5, M6)
- Applications: CT's, PT's, Transformers, Metering Devices
- Testing: As per IEEC # 393 standards
- Quality Control: DC Fluximeter and Supermalloy impedance permeability testing
